High Speed Spiral Door

Collect
  • Description
  • Specification

Product Description

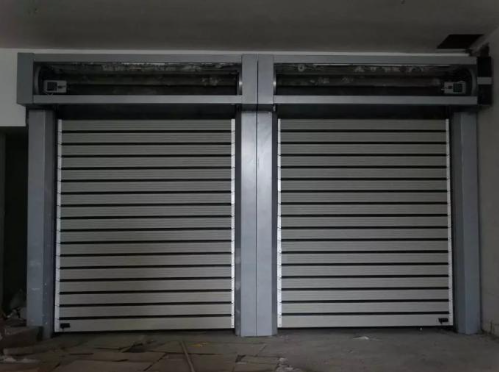

High Speed Performance Spiral Door

The Spiral door offers high-speed operation for high-traffic situations and rigid aluminum slat construction that eliminates the need for a second security door. Crisp lines give the Spiral door a stylish look that's great for many types of commercial, automotive retail, government, institutional and industrial applications. The Spiral door is ideal for automotive dealerships, government, parking and security.

High speed spiral door is a new high-tech product,the techology is in the advanced level in the world.

it have a luxury apperance .

the highest performance industrial door

High speed spiral door surface is very smooth , and all moving parts are strictly designed in accordance
with European safety standard(D IN EN 12604)





Specification of High Speed Aluminum Spiral Door

it can be configured for a wide range of opening and closing speed, allowing you to precisely set the best speed for your application
Product Name
High Speed Aluminum Spiral Door
Special Option
Servo System Motor
Maximum Door Size
W8000mm*H6500mm
Opening speed
0.8 - 2.5 m/s, adjustable
Standard Control Mode
Push wall switch
Operation way
Remote control, Access Control, Magnetic loop,Radar, Pull Rope Switch
Emergency Operation
Available
Door Panel

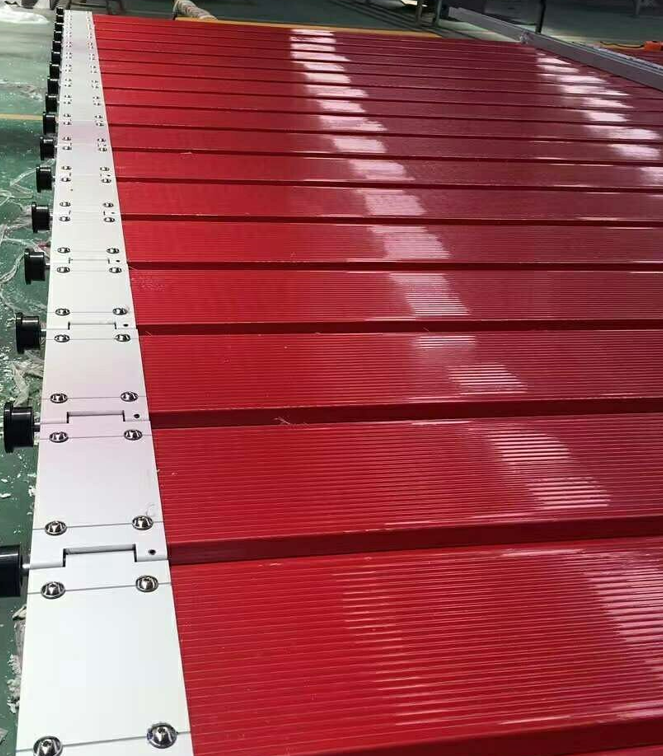

Aluminum sandwich construction, PU foamed


Hardware Material
Frame and Cover Box - Galvanized steel / 304 stainless steel

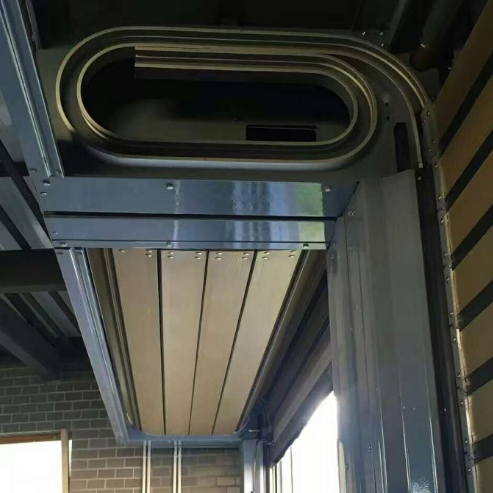

Inner Track Guide - Aluminum extrusion
Vision panel - Optional Double PC sheet window
Motor Brand
SNMA, SEW, SIEMENS,SEJ,SERVO
Motor Power
0.75kw - 5.50kw
Input Voltage
220V 50HZ/380V 50HZ
PLC Brand
SIEMENS / MITSUBISHI / OMRON /KEWEI
Inverter / AC Driver
MITSUBISHI,SIEMENS,SHIHLIN
Revolving Encoder
TOFI (INCREMENTAL ENCODER)
Control Box
Safety class- IP55, Variable speed drive
Safety Performance
Infrared photo sensor, Safety airbag edge protection
Wind Resistance
Class 12 (Beafourt Scale)
Operating Life
500,000 cycles
Working Temperature
-25 °C to 65 °C
Warranty
1 year for electric parts, 5 years for mechnical parts
