Home >> PRODUCTS >>Dock Leveler >> Dock Leveler
Product Detail

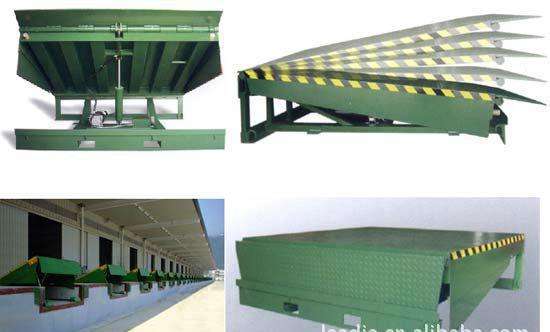

Dock Leveler

Collect
  • Description
  • Specification

1. Why Dock Levelers Matter

Dock levelers are important because it’s impossible that your dock match the height of every truck that services your loading area. If they don’t, this leaves a gap between your dock and the truck, which can make it cumbersome and dangerous to load at your dock.

Dock levelers form a permanent part of your dock to bridge the gap between the truck and the dock or the warehouse floor.

2. Dock Levelers Should Be Matched to Your Dock

The right dock leveler choice for your dock will depend on how you use your dock, as well as budget and operation type. The factors you should consider when evaluating your dock usage include –

  • Volume of dock use

  • Gross amount of weight transferred

  • Whether you use a forklift, pallet truck, hand loading, conveyor, or other material handling equipment

  • The size of the product you handle

  • Your dock and building layout

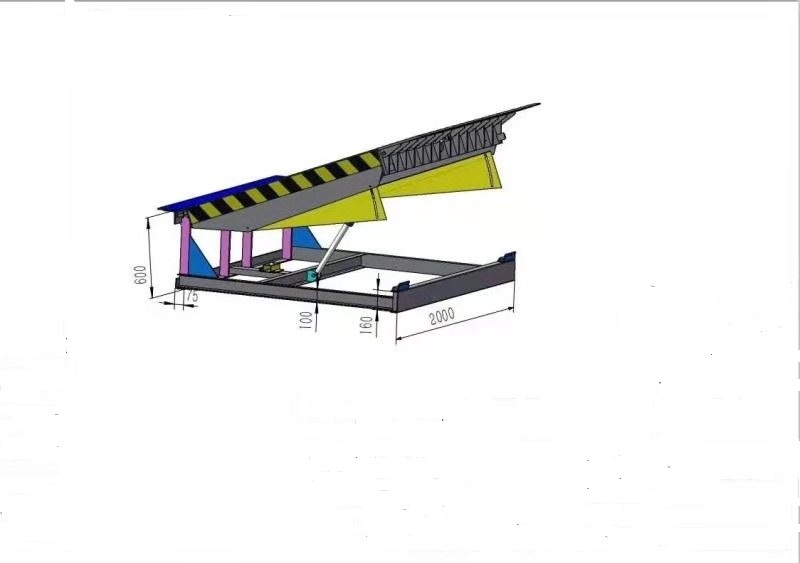

Specifications:

Technical ParameterMax Size7Ft(L)*10mm(W)
Lifting height300mm above the dock leveler
Down height300mm below the dock leveler
Capacity25000-40000LBS
Control UnitControl systemPush Button
Driving SystemHydraulic systemHigh performance hydraulic system
Driving Unit BrandHaiPu Motor
Safety SystemSafe EquipmentFree bumpers
Smart and safe design
Hold -down function
High volume hydraulic driving
Backing -wrenching pulling of chains
Sealing systemDock seal, dock shelter and vehicle restraint.
Curtain ColorGrey, Green
Warranty2 year Free warranty for the hydraulic lifting system
